A professional manufacturer and exporter of power transmission belts, which are widely used in automotive, agriculture, coal, metallurgy, mining, engineering machinery, oil. Textile and light industry, construction, cement and other fields.

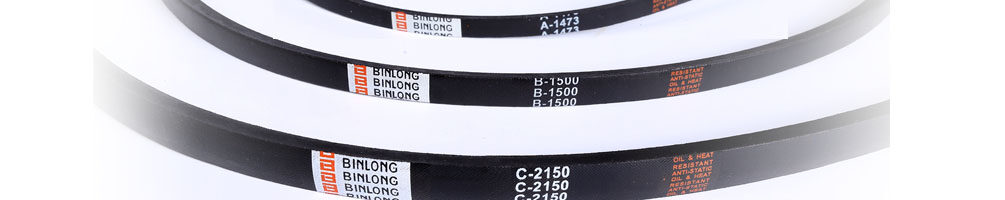

Classical V-Belts
|
Characteristics: • Good abrasion resistance • With little generation of powder • Providing clean power transmission |
Applications:
Primarily used as replacement on industrial drives. The classical belts are recommended in special applications such as V-flat drives. In the same manner these belts are advantages where reverse idlers have to be used, because of smaller heights.
Standards, Dimensions & Product Range:
We manufacture the entire range of Classical V-belts. The nominal length designation for these belts is inside length (Li) in inches. The length conversion factors are mentioned in the specification sheet below.
|
Section |
Top Width |
Thickness |
Angle |
|
(mm) |
(mm) |
(Deg) |
|
|
8 |
8 |
5 |
40 |
|
Z |
10 |
6 |
40 |
|
A |
13 |
8 |
40 |
|
B |
17 |
11 |
40 |
|
20 |
20 |
13 |
40 |
|
C |
22 |
14 |
40 |
|
25 |
25 |
16 |
40 |
|
D |
32 |
19 |
40 |
| E | 40 | 25 | 40 |
| F | 50 | 30 | 40 |
