A professional manufacturer and exporter of power transmission belts, which are widely used in automotive, agriculture, coal, metallurgy, mining, engineering machinery, oil. Textile and light industry, construction, cement and other fields.

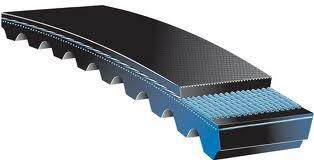

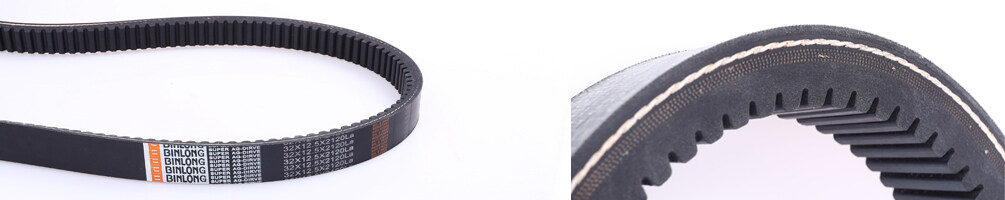

Raw Edge Cogged Variable Speed Harvester Belts
|
Construction: • Polychloroprene impregnated high modulus fabric • Specially designed high modulus cushion compound |
| Temperature Range: | -18 to 90 for regular belts |
| -25 to 100 for special requirement belts | |
| Reference Standards: | ASAE 211.4, BS 3790, DIN 2215, RMA IP 22, ISO 4184, IS 2494, ISO 5289, IS 11038, ISO 3410 |
| Features: | |
| • Specially designed for application with outside idlers • More flexible, suitable for small pulley diameters • Higher power transmission than regular belts. • Excellent performance under variable load conditions |
|
| Product Range: | |
| As per ISO 3410 (E) / IS : 8777 – 1978 Standard | |
| Section | Top Width | Thickness |
| (mm) | (mm) | |
| 20X12.5 | 20 | 12.5 |
| 25X16 | 25 | 16 |
| 32X16 | 32 | 16 |
| 38X18 | 38 | 18 |
| 40X20 | 40 | 20 |
| 45X20 | 45 | 20 |
| 50X20 | 50 | 20 |
| 55X22 | 55 | 22 |
| 55X25 | 55 | 25 |
| 60X25 | 60 | 25 |
| HG | 16.5 | 8 |
| HH | 20.4 | 10 |
| HI | 25.4 | 12.7 |
| HJ | 31.8 | 15.1 |
| HK | 38.1 | 17.5 |
| HL | 44.5 | 19.8 |
| HM | 50.8 | 22.2 |
| HN | 57.2 | 23.8 |
| HO | 63.5 | 25.4 |
