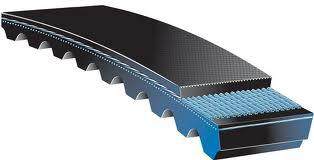

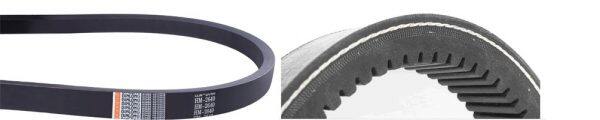

Raw Edge Cogged Variable Speed Harvester Belts
|
Construction: • Polychloroprene impregnated high modulus fabric • Specially designed high modulus cushion compound |
| Temperature Range: | -18 to 90 for regular belts |
| -25 to 100 for special requirement belts | |
| Reference Standards: | ASAE 211.4, BS 3790, DIN 2215, RMA IP 22, ISO 4184, IS 2494, ISO 5289, IS 11038, ISO 3410 |
| Features: | |
| • Specially designed for application with outside idlers • More flexible, suitable for small pulley diameters • Higher power transmission than regular belts. • Excellent performance under variable load conditions |
|
| Product Range: | |
| As per ISO 3410 (E) / IS : 8777 – 1978 Standard | |
| Section | Top Width | Thickness |
| (mm) | (mm) | |
| HG | 16.5 | 8 |
| HH | 20.4 | 10 |
| HI | 25.4 | 12.7 |
| HJ | 31.8 | 15.1 |
| HK | 38.1 | 17.5 |
| HL | 44.5 | 19.8 |
| HM | 50.8 | 22.2 |
| HN | 57.2 | 23.8 |
| HO | 63.5 | 25.4 |
