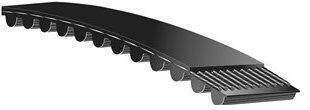

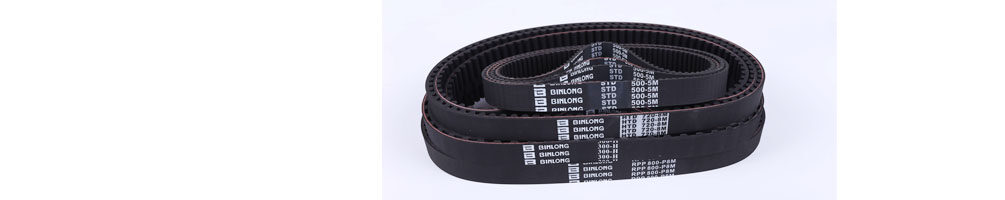

S2M S3M S4.5M S5M S8M S14M

Features:

• Modified curvilinear tooth design.
• Higher load bearing capacity.
• ~ 30% more horsepower capacity than a comparable CT belt.
• Improved distribution of stress in belt teeth.
• Easy entry and exit to / from the sprocket.
• Reduced tooth jump.
• Longer life.
• Efficiency up to 99%.

Section

Pitch

Tooth height

Thickness

(mm)

(mm)

(mm)

S2M

2

0.76

1.36

S3M

3

1.14

2.3

S4.5M

4.5

1.71

2.81

S5M

5

1.91

3.4

S8M

8

3.05

5.3

S14M

14

5.3

10.2
