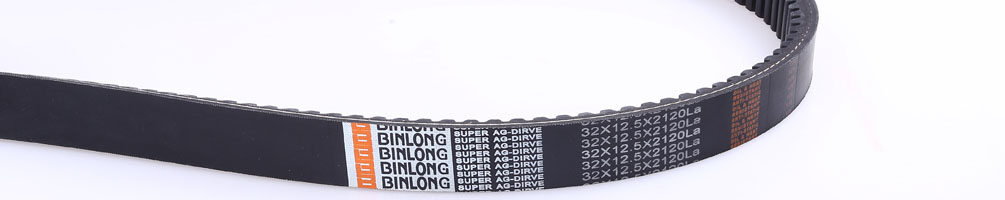

Variable Speed Belts

 5/5

Information

Features:

• Excellent transverse rigidity and flexibility to prevent bucking at minimum diameter settings where belt stress is more
• Firm gripping action in contact areas provide positive traction for precise & immediate response
• High power transmission than regular range of belts
• Longer service life
• Facilitates smooth running without excessive vibrations
• Specific belt design for maximum longitudinal flexibility

Applications:

For use on variable speed pulley drives requiring exact speed control and maximum range of speed changes. Ideal for recreational equipment, agricultural applications and machine tools

Standards, Dimensions & Product Range:

As per RMA IP 25/1991 Standard (Dimensions in mm)

Section	Top Width	Angle
Section	(mm)	(Deg)
1022V	16	22
1228V	19	28
1330V	21	30
1422V	22	22
1426V	22	26
1430V	22	30
1524V	24	24
1526V	24	26
1528V	24	28
1622V	25.4	22
1626V	25.4	26
1628V	25.4	28
1822V	28.5	22
1922V	30	22
1926V	30	26
2322V	36.5	22
2530V	40	30
2926V	46	26
3226V	51	26
3230V	51	30
4036V	64	36
4430V	70	30
4436V	70	36
4836V	76	36
6238V	100	36

Section	Top Width	Angle
Section	(mm)	(Deg)
W16	17	6
W20	21	7
W25	26	8
W31.5	33	10
W40	42	10
W50	52	16
W63	65	20
W80	83	26
W100	104	30
